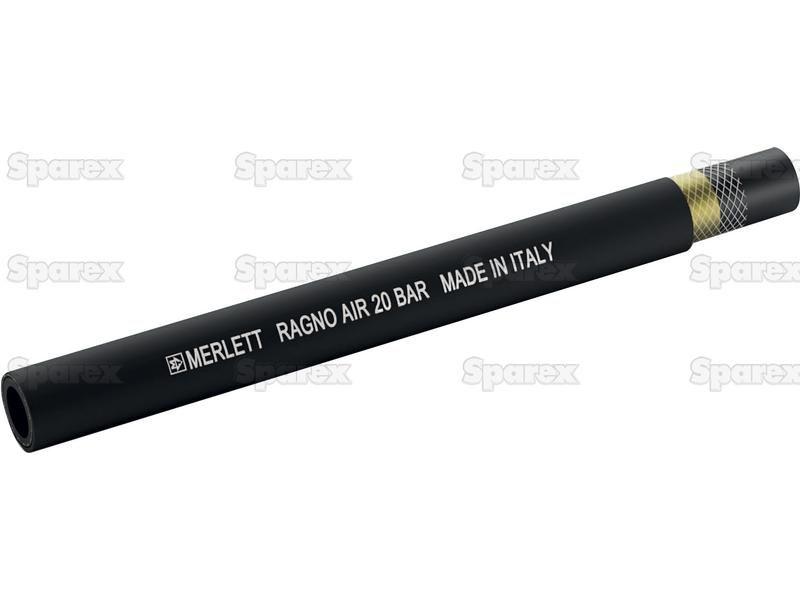

Air Hose (Ragno Air 20 Bar), Hose ID: 10mm (3/8'')
Part Number: S.135769Categories: Muck Spreader
Part Number: S.135769
Grade: Replacement
Part Details
Air Hose (Ragno Air 20 Bar), Hose ID: 10mm (3/8'') Hose OD: 15mm Working pressure: 20 Bar - 20 °C, 18 Bar - 40 °C, 16 Bar - 60 °C Temperature range: -5°C/+60°C Roll Length:100m Sold in multiples of : 5M Soft PVC hose with polyester yarn reinforcement and intermediate bonding PU adhesive layer for passage of air under pressure
Technical Information
| Bend radius mm | 80 |
| Brand | Merlett |
| Hose inner Ø ins | 3/8 |
| Hose inner Ø mm | 10 |
| Hose outer Ø mm | 15 |
| Hose type | Ragno Air 20 Bar |
| Roll length M | 100 |
| Tariff Code | 3917239090 |
| Temperature Range | -5°C/+60°C |
| Type | Soft PVC hose with polyester yarn reinforcement and intermediate bonding PU adhesive |
| Working pressure bar | 20 Bar - 20 °C, 18 Bar - 40 °C, 16 Bar - 60 °C |
