KRM EX / EXW Trend Spare Parts List & Diagrams

This page recreates the KRM-supplied spare parts book for the Bogballe EX Trend and EXW Trend fertiliser spreaders in a cleaner, searchable format. It is designed to help you identify the right part from the diagram first, then match it to the correct order number.

The parts information in this guide applies to:

EX Trend spreaders from machine number 2094 onwards
EXW Trend spreaders from machine number 686 onwards

If you are searching for KRM EXW Trend parts, KRM parts book or Bogballe EX Trend spare parts, this is the same reference source, rebuilt into a more usable on-site guide.

Reference: KRM / Bogballe spare parts documents 0402-58-02-15 and 0402-59-02-15, dated 17 February 2015. Source file: KRM-EXW-Trend-Spare-Parts-List-1.pdf.

How to use this KRM parts guide

Each section below includes the original exploded diagram plus the matching position-by-position order-number table.

To identify the correct part, work in this order:

Confirm whether your spreader is an EX Trend or EXW Trend
Check the machine number to make sure this parts book applies
Find the part's position number on the diagram
Match that position number to the order number in the table
Watch for notes such as Left, Right, EX, EXW, Cat 2 or Cat 3

Section 1 — Hopper, Lid & Frame Assembly

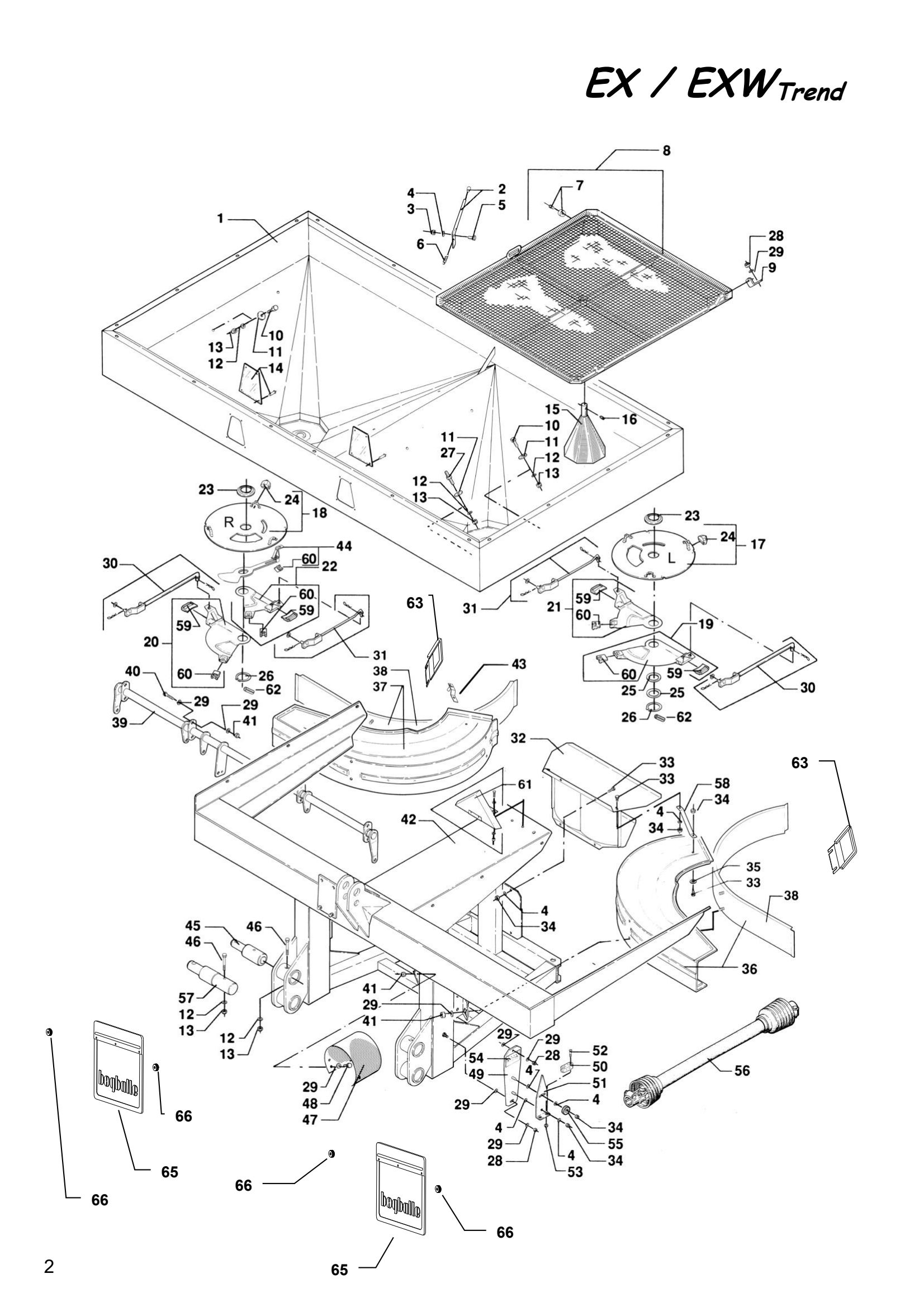

Bogballe EX/EXW Trend hopper, lid and frame assembly parts diagram

Pos.	Order no.	Notes	Pos.	Order no.	Notes
1	4510-04		35	9930-03	D6/18
2	4510-09		36	4571-01	Left, stainless
3	9969-16	M6	37	4571-02	Right, stainless
4	9930-02	D6/12	38	4571-03
5	9961-12	M6×20	39	4540-01
6	9934-13	Ø1.5×11×32	40	9962-04	M8×20
7	4513-07		41	9969-31	M8
8	4513-02		42	4520-01	EX
9	4930-69		42	4520-20	EXW
10	9963-01	M10×25	43	4612-01
11	3210-05		44	4611-00
12	9968-44	D10×21	45	4223-24	Cat 2
13	9969-45	M10	46	9963-03	M10×75
14	4110-31		47	4470-01
15	4016-05		48	9962-03	M8×16
16	9913-20	M8×10	49	4930-82
17	4512-13	Left	50	9987-12
18	4512-14	Right	51	4930-80
19	4512-05	Big, left	52	9929-39	M4×25
20	4512-06	Big, right	53	9968-78	M4
21	4512-08	Small, left	54	9991-95
22	4512-09	Small, right	55	9990-43
23	4512-12		56	9985-40	810 mm
24	4512-11		57	4223-21	Cat 3
25	4012-11		58	4571-04
26	4511-06	U44	59	4412-20	Big
27	4310-07	M10 / M8	60	4412-21	Small
28	9969-32	M8	61	4573-01
29	9930-32	D8/17	62	9933-25	Ø2×10
30	4541-03		63	4571-10
31	4541-04		64	4951-84
32	4572-01		65	4970-81
33	9961-11	M6×12	66	9990-43
34	9969-15	M6	67	0676-02

Section 2 — Drive, Spreading Discs & Vanes

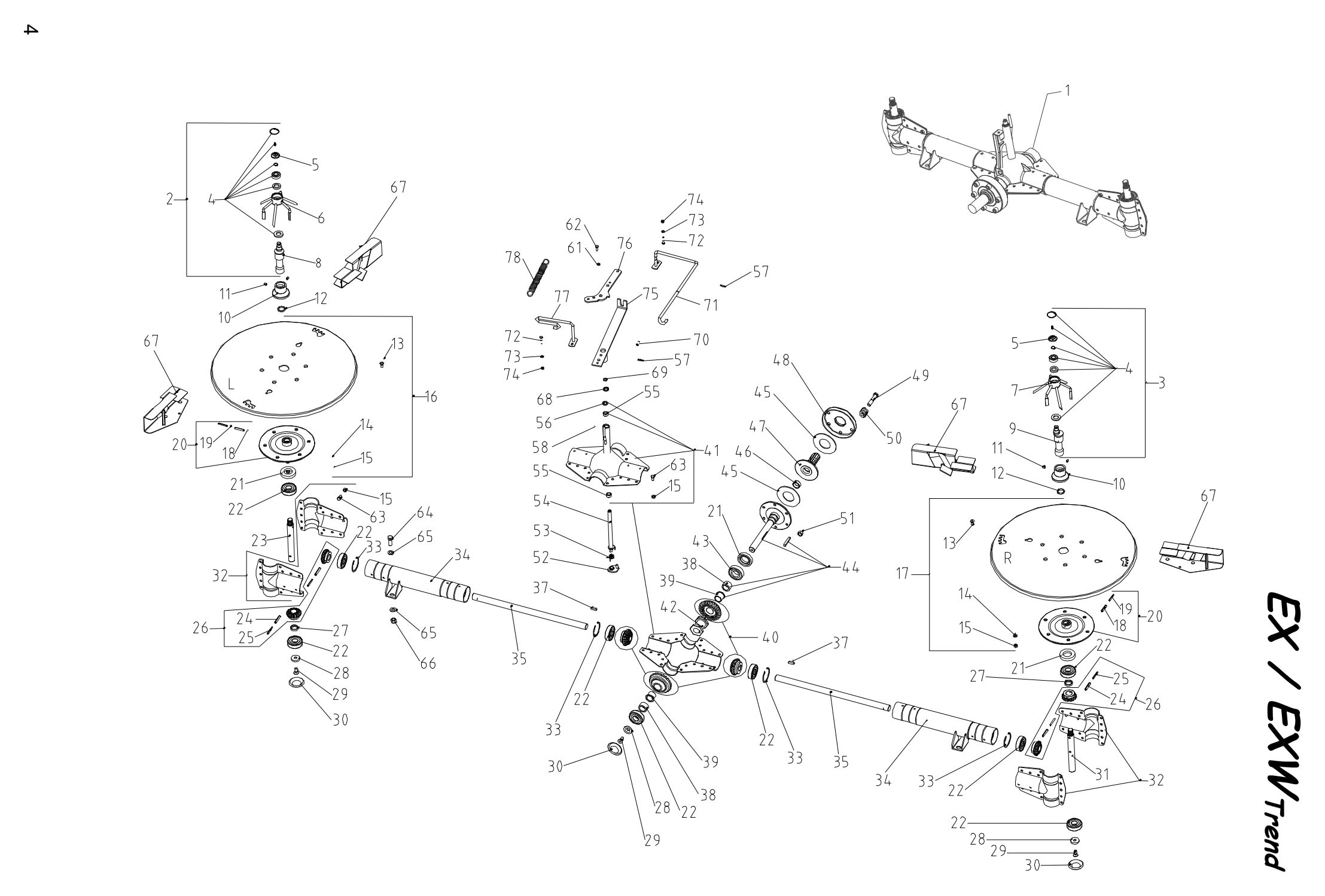

Bogballe EX/EXW Trend drive, spreading discs and vanes parts diagram

Pos.	Order no.	Notes	Pos.	Order no.	Notes
1	4750-02	540/750 rpm	41	4660-00
2	4160-01	Right	42	4652-09
3	4160-02	Left	43	9950-03	6206-2RS
4	4056-10		44	4652-01
5	4056-03		45	3260-09
6	4058-05	Right	46	9990-90
7	4058-06	Left	47	3263-00
8	4161-02	Left	48	3260-07
9	4161-01	Right	49	9965-02	M12×65
10	4158-05		50	9934-03
11	9913-20	M8×10	51	9969-60	M12
12	4560-01	Ø20×Ø30×5	52	4653-10
13	9929-35	M8×20	53	9934-02
14	9930-32	D8/17	54	4653-02
15	9969-31	M8	55	9990-99	14×20×10
16	4550-05	Left	56	9936-29	14×22×4
17	4550-06	Right	57	9934-31
18	9933-02	Ø8×40	61	9930-07	D6/17
19	9933-11	Ø5×40	62	9961-04	M6×16
20	4051-05		63	9962-03	M8×16
21	9936-37	35×62×12	64	9965-01	M12×35
22	9950-02	6305-2RS	65	9930-35	D12/24
23	4155-04	Right thread	66	9969-62	M12
24	9933-12	Ø8×45	67	4650-12	E1 T 2 left / 2 right
25	9933-17	Ø5×45	67	4650-20	E2 T 2 left / 2 right
26	3265-02	15 teeth	67	4650-28	E6 T 2 left / 2 right
27	3262-05		67	4650-36	E8 T 2 left / 2 right
28	3260-04		68	9936-28
29	9963-07	M10×25	69	9937-13	U 14
30	3260-05		70	9913-19	M8×10
31	4062-05	Left thread	71	4690-08
32	4454-05		72	9961-12	M6×20
33	9937-40	I60	73	9930-02	D6/17
34	4557-02		74	9969-16	M6
35	4156-02		75	4655-05
37	9931-56	8×7×25	76	4653-15
38	4652-03		77	4690-05
39	4652-08		78	9934-07
40	4652-10	17 / 24 teeth

Section 3 — Hitch, A-Frame & Linkage (EXW only positions noted)

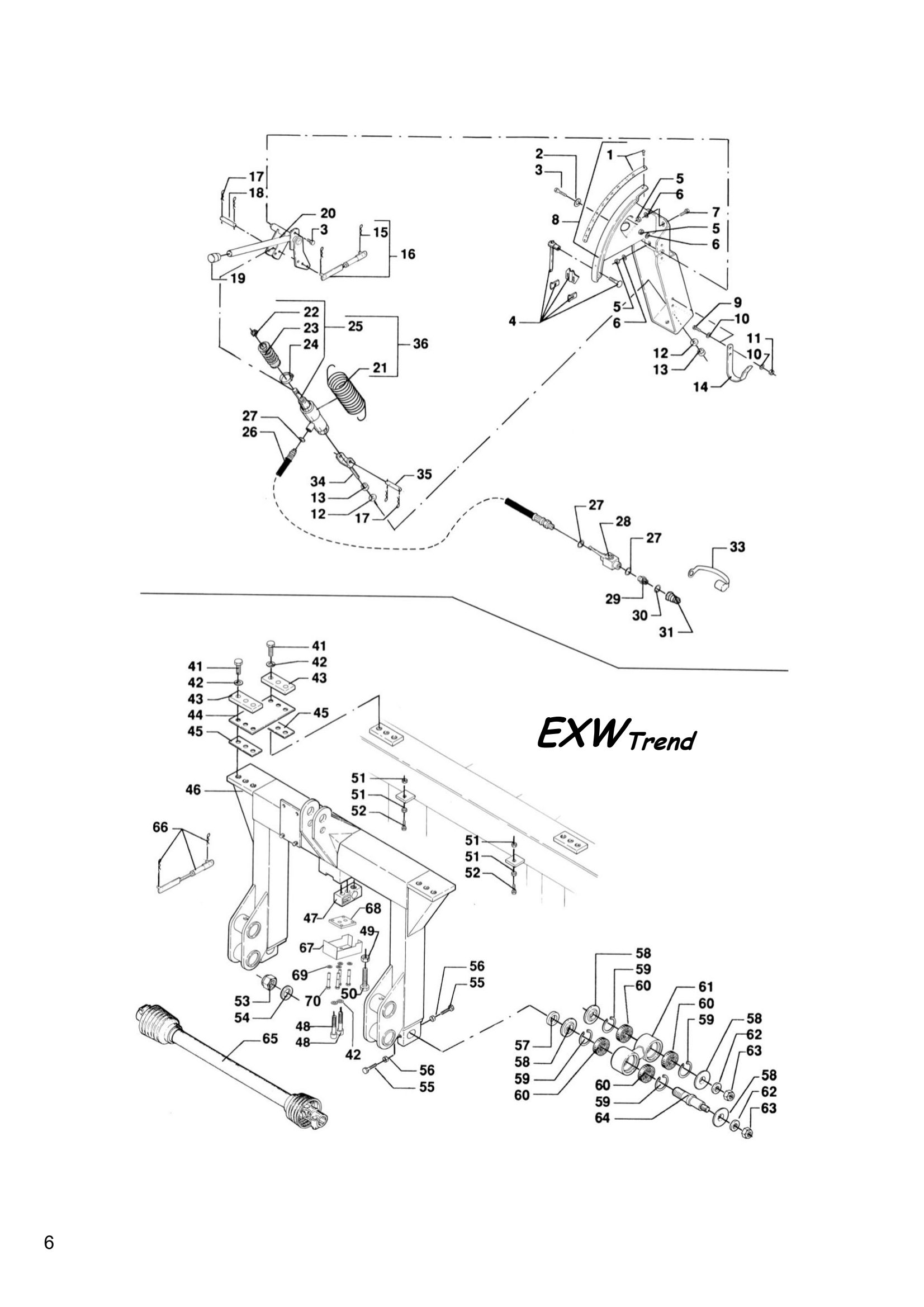

Bogballe EXW Trend hitch, A-frame and linkage parts diagram

Pos.	Order no.	Notes	Pos.	Order no.	Notes
1	4581-03		41	9964-73	M16×45
2	9930-31	D8/24	42	9930-20	D17/30
3	9962-03	M8×16	43	4220-26
4	3961-30		44	4220-25
5	9969-31	M8	45	4220-27
6	9930-32	D8/17	46	4522-30
7	9962-04	M8×20	47	9942-33
8	4581-04		48	9913-41	M16×90 kv12.9
9	9961-04	M6×16	49	9968-97	M20
10	9930-02	D6/12	50	4220-29	M20×100
11	9969-15	M6	51	9969-46	M10
12	9930-35	D12/24	52	9963-12	M10×30
13	9969-60	M12	53	9968-98	M30
14	4581-36		54	4220-36	D30/52
15	9934-31		55	9965-05	M12×40
16	4581-30	225 / 260 mm	56	9969-60	M12
17	9934-32		57	4220-38	D30/52
18	4581-29		58	4220-33
19	9990-52		59	9937-45	I 72
20	4581-10		60	9950-05	6306-2RS
21	9934-14		61	4220-30
22	9990-60	D24	62	4220-37	D20/40
23	9987-04		63	9969-94	M20
24	9990-61	D40	64	4222-43
25	4581-15		65	9985-33	1010 mm
26	9983-29		66	4584-10	EXW
27	9936-79		66	4952-90	EXW 36 m
28	9982-06		67	4522-40
29	9990-84		68	4522-42
30	9936-80		69	9930-35	D12/24
31	9983-09		70	9965-07	M12×70
33	9990-19
34	4581-25
35	4581-28
36	4581-37

How to order Bogballe EX / EXW Trend spare parts

When ordering, please supply:

Machine model — EX Trend or EXW Trend
Machine number (chassis number) — needed because:
- EX Trend numbering covered by this list starts at machine 2094
- EXW Trend numbering covered by this list starts at machine 686
Position number from the relevant diagram above
Order number — the XXXX-XX reference

A position with a left/right or EX/EXW variant must always specify which.

What this KRM parts book covers

This guide is best used as a reference page for identifying:

hopper and lid components
frame parts and fittings
spreading disc and vane parts
drivetrain components
EXW hitch and linkage parts
fasteners, washers, bushes and other numbered hardware called out in the diagrams

Because this is a parts-book format, many lines are shown as an order number plus a short note rather than a full retail product description. The diagram position is therefore just as important as the order number when identifying the right item.

Why machine number matters

Bogballe and KRM parts references are often machine-number dependent. Two spreaders that look similar can still use different part revisions, so this guide should always be read alongside the machine number stamped on your own spreader.

That is especially important where the notes show:

EX versus EXW
Left versus Right
different hitch categories such as Cat 2 and Cat 3
alternative measurements such as 810 mm, 1010 mm or 225 / 260 mm

Original source document

The underlying reference used for this on-site guide is the original KRM-EXW-Trend-Spare-Parts-List-1.pdf supplier file from the May 2026 content batch.
